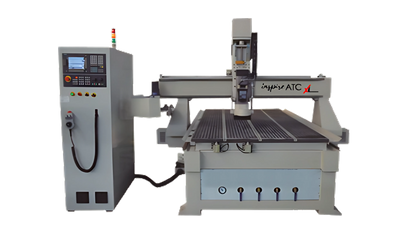

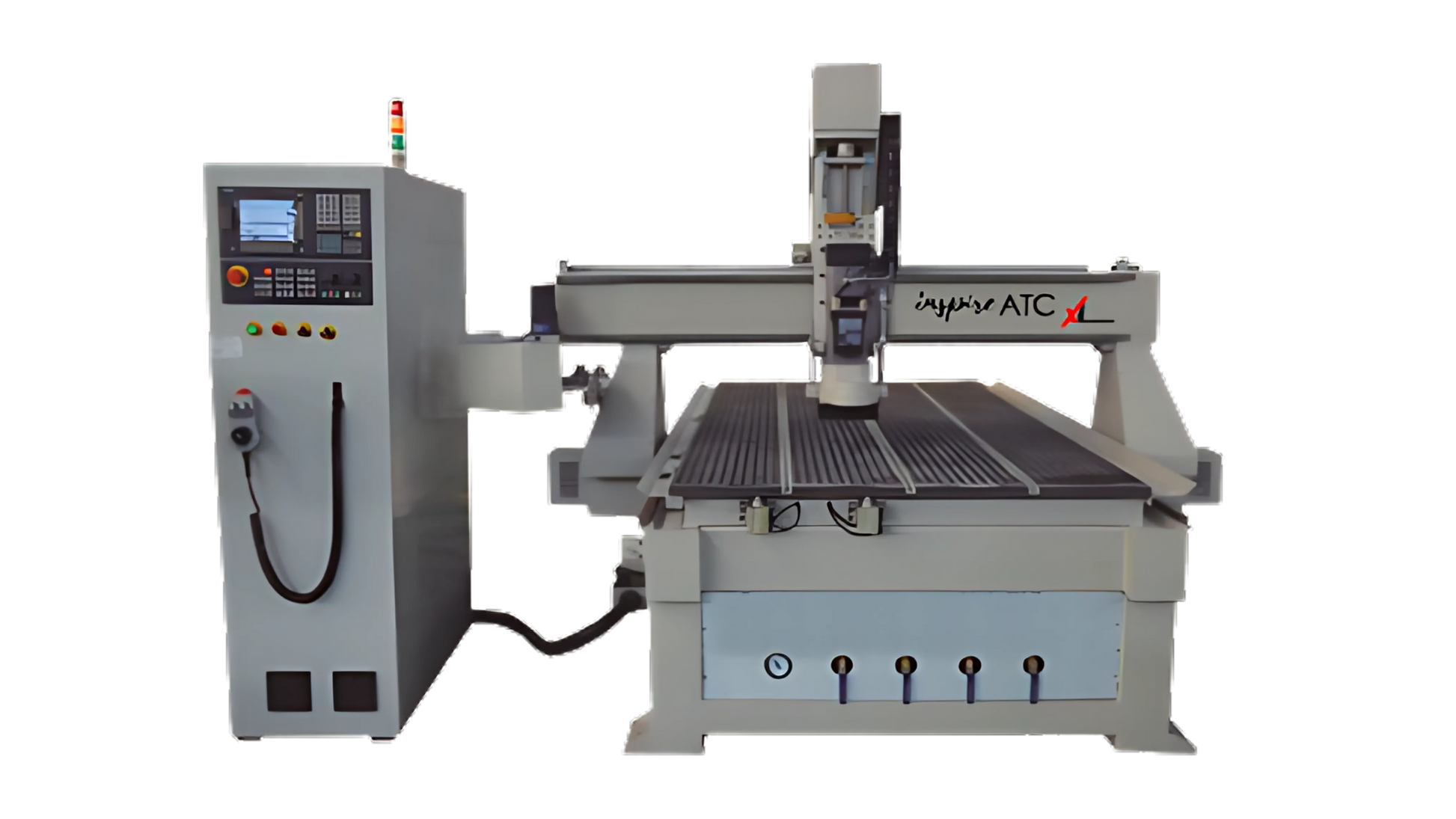

INSPIRE ATC XL – High-Precision CNC Router

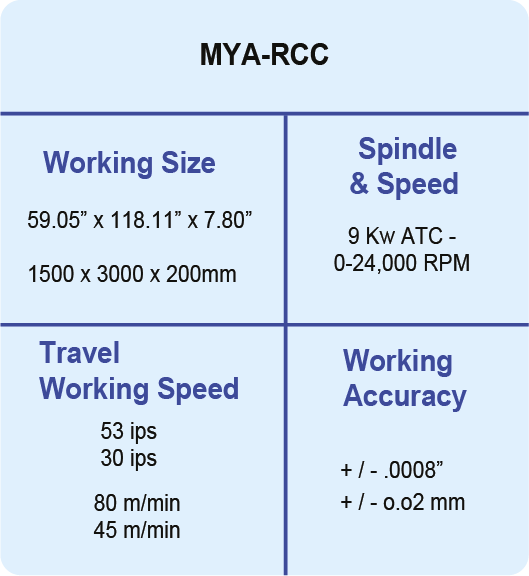

Technical Specifications:

✅ Working Area: 1500mm x 3000mm x 200mm (59.05” x 118.11” x 7.80”)
✅ Control System: Advanced and user-friendly
✅ Spindle: 9.0 Kw HQD ATC Air Cooling
✅ Motors & Drivers: Servo Driver & Motor for high precision
✅ Reducer: Shimpo for X and Y axes
✅ Inverter: 11 Kw high-efficiency
✅ Automatic Tool Changer (ATC): 10 inline positions
✅ Worktable: T-Slot with vacuum system for maximum stability
✅ Vacuum Pump: Copy Becker 5.5 Kw
✅ Voltage: 3-phase 380V, 50Hz

QUOTE THE INSPIRE ATC XL

What's Included:

📦 INSPIRE ATC XL – Delivery, installation, and basic equipment training (2 hours)
🖥 Vectric V CARVE PRO Software – License + basic training (2 hours)
🌀 Dust Collection System – Keep your workspace clean
🔩 Accessories & Consumables – Copy Becker Vacuum, MDF ¾” (5’ x 10’), and a 3-tool CNC bit kit

Warranty & Support:

✅ 1-Year Warranty – Immediate and free replacement of parts for non-user-related damages
📞 Free Training – Support via phone, email, or at our facilities in Puerto Rico
🌍 On-Site Support Available – Technician dispatch to customer location (travel and accommodation costs not included)

📌 Model: INSPIRE ATC XL

🚀 Enhance your production with top-tier CNC router technology!
